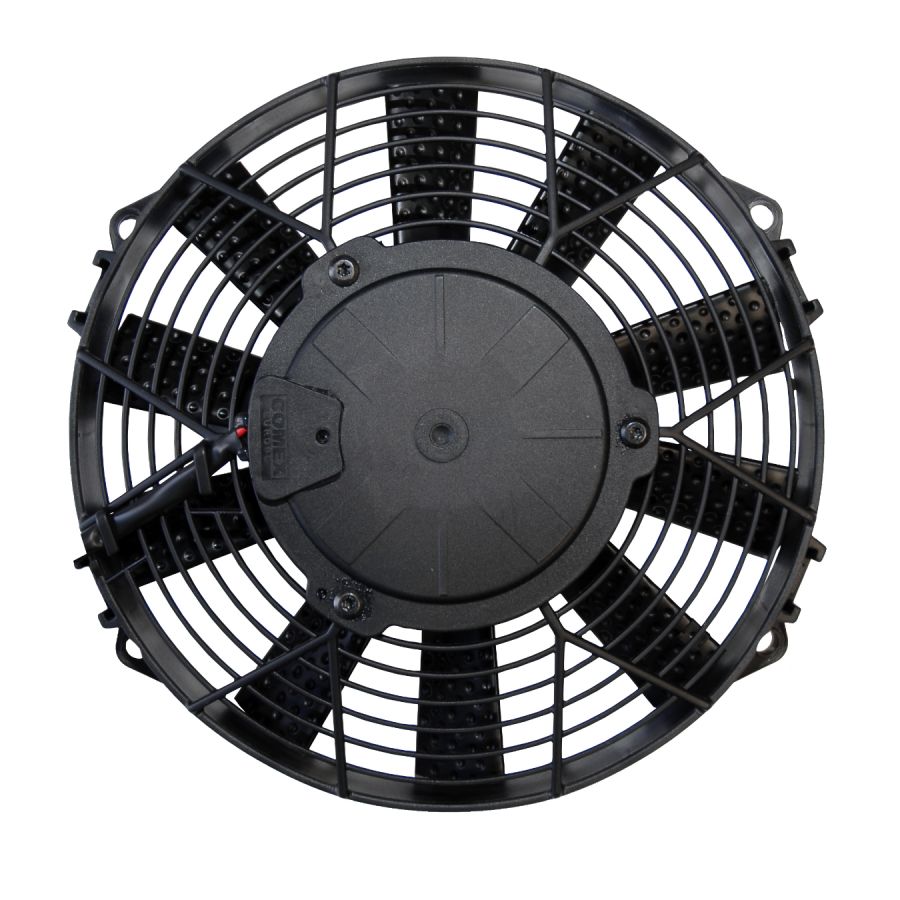

COMEX SlimLine space-saving fan

COMEX SlimLine space-saving fan


COMEX fans combine durability, performance and price, making them one of the best alternatives on the market.

These products feature balanced blades and sealed bearings for maximum efficiency and durability.
As well as being light and powerful, these fans are very slim, making them suitable for installation in even the most confined spaces.
The surface of the blades is honeycombed like a golf ball, accelerating the airflow.
IP68 certified, they can withstand the most extreme use.

SlimLine version takes up minimal space. Also available in High Power (Ref. VENT_COMEX_HP) and Very High Power (Ref. VENT_COMEX_VHP) versions for more demanding applications.

Available in the dimensions below:
- Total diameter: 184.5 mm, blade diameter: 167 mm, total thickness: 59 mm, maximum air flow: 560 m³/hour (Suction).
- Total diameter: 184.5 mm, blade diameter: 167 mm, total thickness: 59 mm, maximum air flow: 450 m³/hour (Blower).
- Total diameter: 210 mm, blade diameter: 190 mm, total thickness: 53 mm, maximum air flow: 660 m³/hour (Suction).
- Total diameter: 210 mm, blade diameter: 190 mm, total thickness: 53 mm, maximum air flow: 660 m³/hour (Blower).
- Total diameter: 246 mm, blade diameter: 225 mm, total thickness: 53 mm, maximum air flow: 1010 m³/hour (Suction).
- Total diameter: 246 mm, blade diameter: 225 mm, total thickness: 53 mm, maximum air flow: 1030 m³/hour (Blower).
- Total diameter: 284.5 mm, blade diameter: 255 mm, total thickness: 55 mm, maximum air flow: 1440 m³/hour (Suction).
- Total diameter: 284.5 mm, blade diameter: 255 mm, total thickness: 55 mm, maximum air flow: 1340 m³/hour (Blower).
- Total diameter: 310 mm, blade diameter: 280 mm, total thickness: 53 mm, maximum air flow: 1620 m³/hour (Suction).
- Total diameter: 310 mm, blade diameter: 280 mm, total thickness: 53 mm, maximum air flow: 1650 m³/hour (Blower).
- Total diameter: 336 mm, blade diameter: 305 mm, total thickness: 53 mm, maximum air flow: 1580 m³/hour (Suction).
- Total diameter: 336 mm, blade diameter: 305 mm, total thickness: 53 mm, maximum air flow: 1860 m³/hour (Blower).
- Total diameter: 371 mm, blade diameter: 350 mm, total thickness: 58 mm, maximum air flow: 2060 m³/hour (Suction).
- Total diameter: 371 mm, blade diameter: 350 mm, total thickness: 58 mm, maximum air flow: 2010 m³/hour (Blower).

Non-contractual visuals.
